Controllers

YVRInput and YVRControllerRig are the two entry points for obtaining controller data. YVRInput implements all functions related to controller input states, while YVRControllerRig encapsulates all operations and information related to controller rigidity.

For more information, refer to YVRInput and YVRControllerRig.

YVR Touch Tracking

YVRControllerRig provides touch position and orientation data through GetPosition and GetRotation. Other data, such as velocity, angular velocity, acceleration, and angular acceleration, can also be obtained from YVRControllerRig.

YVRInput Usage

The main purpose of YVRInput is to access the controller input states through Get(), GetDown(), and GetUp(). It also sets the amplitude and duration of the controller's vibration.

• Get(): Queries the current state of a controller.
• GetDown(): Queries if a button (touch) was pressed in this frame.
• GetUp(): Queries if a button (touch) was released in this frame.
• SetControllerVibration(): Sets the amplitude and duration of the controller's vibration.

Control Input Enums

For the Get(), GetDown(), and GetUp() functions, there are various variations to provide different access to different sets of controls. These control sets are divided into two categories: Virtual Mapping and Raw Mapping, both exposed through enums. The enum categories defined in Virtual Mapping are as follows:

• VirtualButton: Traditional buttons on YVR Touches.
• VirtualTouch: Capacitive sensing control surfaces on YVR Touches.
• VirtualAxis1D: One-dimensional controls reporting float states.
• VirtualAxis2D: Two-dimensional controls reporting Vector2 states.

The enums defined in the Raw Mapping category are highly related to those in Virtual Mapping, as follows:

• RawButton
• RawTouch
• VirtualAxis1D
• VirtualAxis2D

For the conversion between Raw Mapping and Virtual Mapping, refer to the following section.

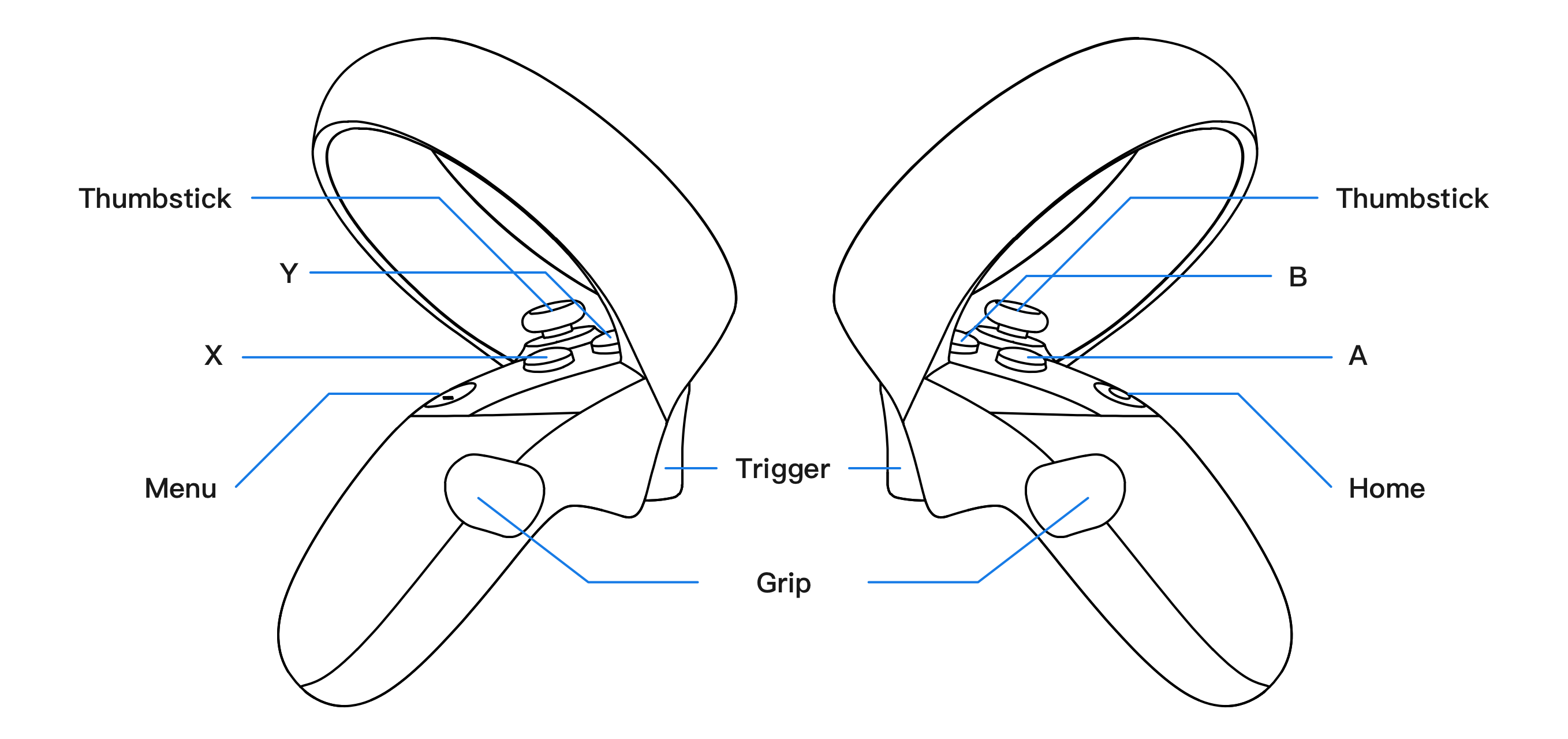

Touch Input Mapping
