Hand Tracking

Configure Development Environment

Device

• YVR2
• Play For Dream MR

Device System Version

• 1.2.2.209 and above

Unity Version

• LTS version

Note

Compatible with Real-time Preview Tool version 3.1 and above.

Configuration Process

1. Enable the Hand Tracking feature in the system lab of the device.
2. Import the YVR package.
3. Create a new scene or open an existing scene in the Unity editor.
4. Drag YVRCameraRig from the com.yvr.core/Prefabs/ directory to the Hierarchy panel.

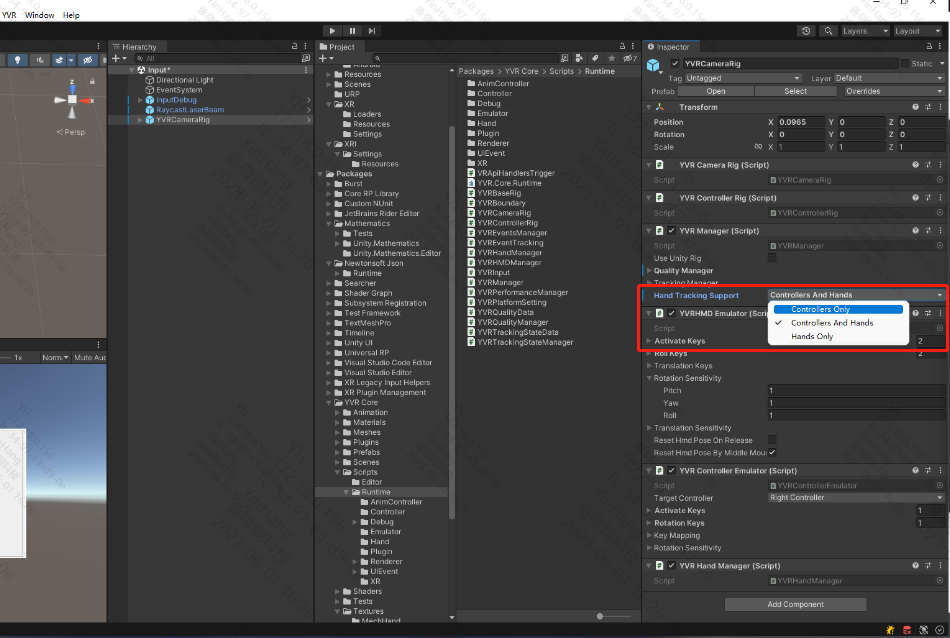

5. Select YVRCameraRig, and in the YVRManager component, choose whether to support hand tracking or controller from Hand Tracking Support to enable hand tracking or controller capabilities for the application.
6. Build the scene and run it on the device.

Note

Refer to the code comments for specific interfaces.

Obtain Hand Tracking Data

You can obtain hand tracking-related information by calling the interfaces provided by the SDK, including feature enable status, tracking accuracy, gesture data, and hand interaction status.

Feature Enable Status

Interface	Feature Enable Status
YVRHandManager.GetHandTrackingEnable	Get the enable status of the hand tracking feature. The request will return a boolean value, true means "enabled", false means "not enabled".

Tracking Accuracy & Gesture Data

Interface	Gesture Data
YVRHandManager.leftHandData / YVRHandManager.rightHandData	Get gesture data, including the number of joints, hand size, joint direction and position, and hand interaction status, including ray interaction posture, and whether each finger is pinching and the specific pinch strength.

Hand Interaction Status

Interface	Hand Interaction Status
YVRHandManger.GetFingerPinchStrength	Get the pinch strength between other fingers and the thumb.
YVRHandManager.GetPinch	Get whether the fingers are pinching.
YVRHandManager.GetPinchDown	Get whether the fingers triggered a pinch in the current frame.
YVRHandManager.GetPinchUp	Get whether the fingers triggered a pinch release in the current frame.

Switching Between Controller Input and Hand Gesture Input

After enabling the hand tracking capability on the device,

• The condition for the controller to switch to hand gesture input is: the controller is not connected or the connected controller is idle for 5 seconds, enabling hand tracking.
• The condition for hand gesture input to switch to the controller is: the controller is powered on or a button on the connected idle controller is pressed.

Device Input Switching Process

1. Listen to the YVRManager.instance.eventsManager.onInputDeviceChange event.
2. Call YVRPlugin.Instance.GetCurrentInputDevice(ref ActiveInputDevice inputDevice) to query the current input device.
3. Set the current input device for UI interaction input, YVRInputModule.Instance.SetInputDataProvider(DataProviderSource source).
4. Show and hide the corresponding device objects.

Note

The interaction toolkit recommends using Samples | XR Interaction Toolkit | 2.3.1
